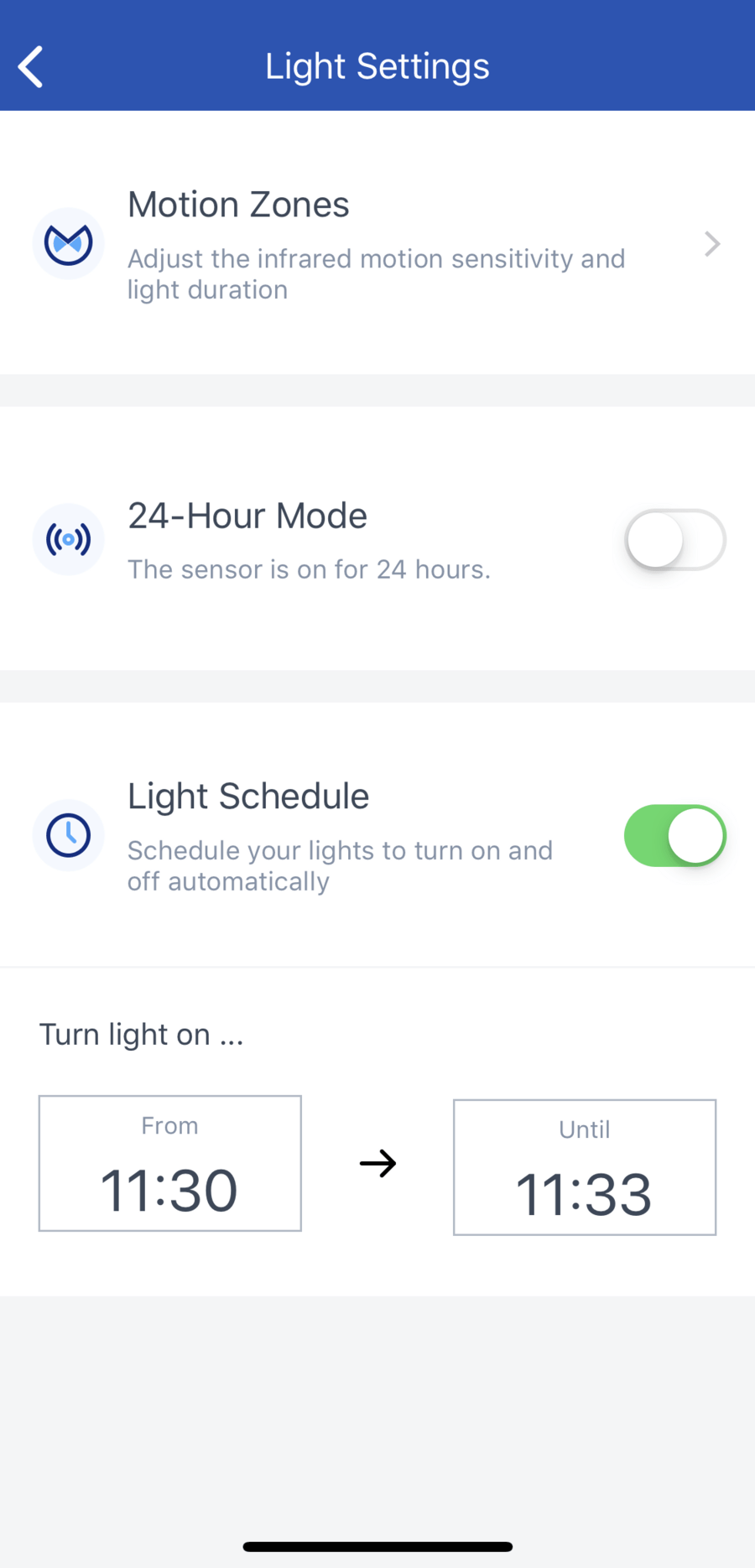

Light Settings

light_settings

Description

You can configure the parameters respectively of the light and the infrared sensor under the “Light Settings”, including:

  • Motion Zone：Settings of infrared sensing zones
  • 24-Hour Mode：Switch button of 24-hour mode
  • Light Schedule：Settings of the lighting schedule

Steps

Motion Zone

You can set up the infrared sensing zones, sensing sensitivity and lighting duration time from sensing motion in the “Motion Zone” page. By switching the motion sensor of the camera, the infrared sensing is performed by the 3 infrared sensors underneath the device. The device will record motion detected that activate the sensors. If the device is in an environment (when there is lower ambient brightness) or the “24-Hour Mode” is activated, the LED lights will stay illuminated. The LED lights will turn off depending on the illumination time the user has set.

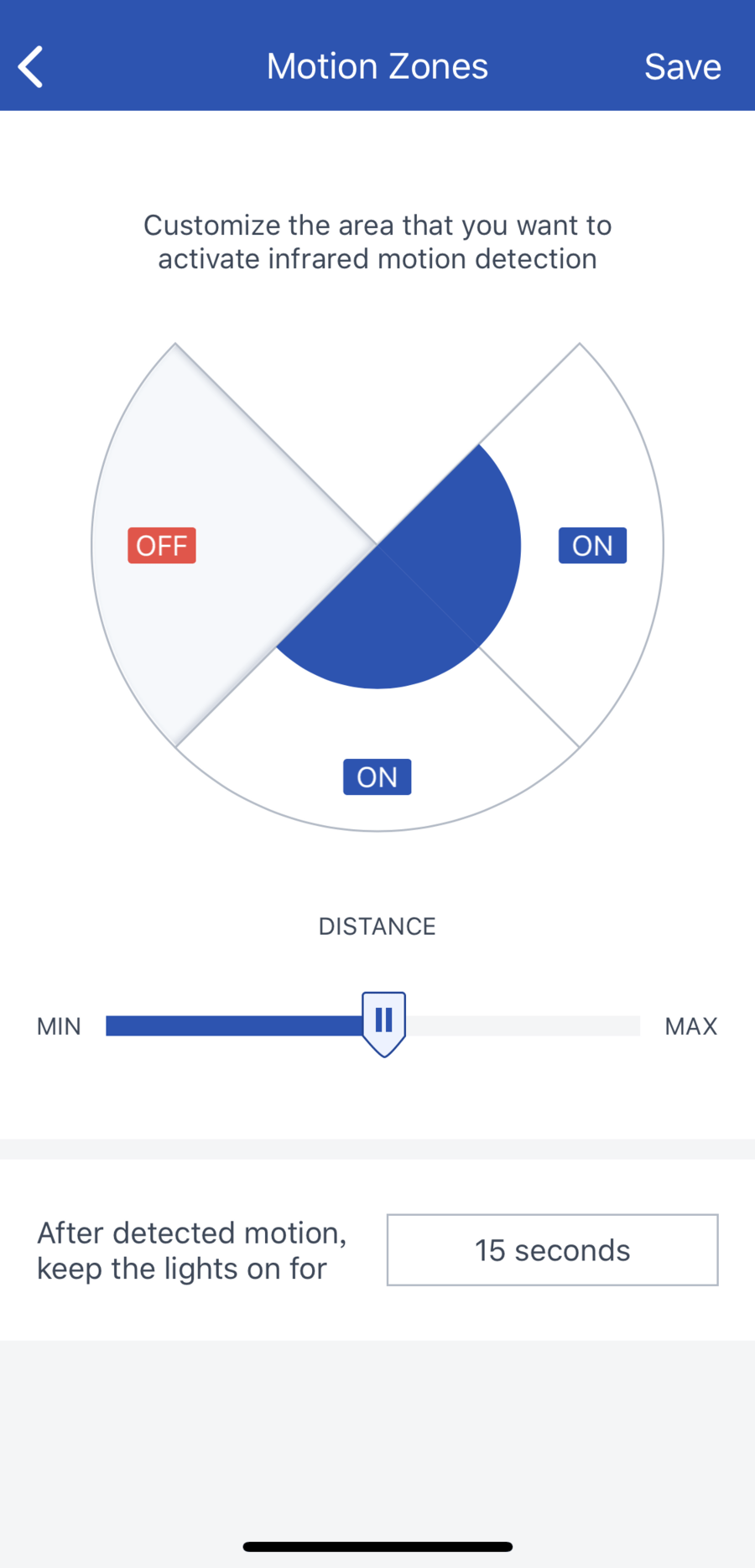

  1. Select the “Motion Zone” to enter the settings. motion_zone
  2. Switch on or off the infrared sensor by tapping the three fan-shaped sectors respectively.
  3. Drag the slide bar to adjust the sensitivity of the infrared sensors.
  4. Select the time-setting button at the bottom to set up the light’s duration time.

24-Hour Mode

If the “24-Hour Mode” is activated, the LED lights will turn on at any time throughout the day as long as the motion is detected by the infrared sensors. If the “24-Hour Mode” is deactivated, the LED lights will only turn on at night time (when there is lower ambient brightness) and the motion is detected by the infrared sensors.

  1. Select the switch button to activate or deactivate the “24-Hour mode”.

Light Schedule

If the “Light Schedule” is activated the LED lights will turn on according to their start time and turn off according to their end time set by the user.

Please note, the LED lights will not turn on again, if they are switched off manually by the user during the lighting period of the Light Schedule.

  1. Select the switch button to activate or deactivate the “Light Schedule”.

  2. Tap “From” and “Until” to set the start and end time of the “Light Schedule.”
